Overview

This project is a full-stack sample that combines:

  • FastAPI backend for API endpoints
  • Static HTML/CSS/JavaScript frontend for chat UI
  • Azure OpenAI for chat/completions
  • Azure AI Search for retrieval in RAG mode
  • Docker for local containerized run
  • GitHub Actions for CI/CD deployment to Azure Container Apps

It supports two user modes:

  • Chat mode: sends question to Azure OpenAI only
  • RAG mode: retrieves top search documents, injects context, then asks Azure OpenAI

Environment Setup and Run/Stop

Prerequisites

  • Python 3.11+
  • Docker Desktop
  • Azure OpenAI resource and deployment
  • Azure AI Search resource and index

Environment file

  1. Copy .env.example to .env
  2. Fill required values:
    • AZURE_OPENAI_ENDPOINT
    • AZURE_OPENAI_API_KEY
    • AZURE_OPENAI_CHAT_DEPLOYMENT
    • AZURE_SEARCH_ENDPOINT
    • AZURE_SEARCH_ADMIN_KEY
    • AZURE_SEARCH_INDEX_NAME
    • Optional field mapping values for your index schema:
      • AZURE_SEARCH_CONTENT_FIELD
      • AZURE_SEARCH_TITLE_FIELD
      • AZURE_SEARCH_SOURCE_FIELD
      • AZURE_SEARCH_VECTOR_FIELD

Create and configure Azure OpenAI (resource, chat model, deployment)

  1. In Azure Portal, create an Azure OpenAI resource in your target subscription/resource group.
  2. Open Azure AI Foundry (or Azure OpenAI Studio) for that resource.

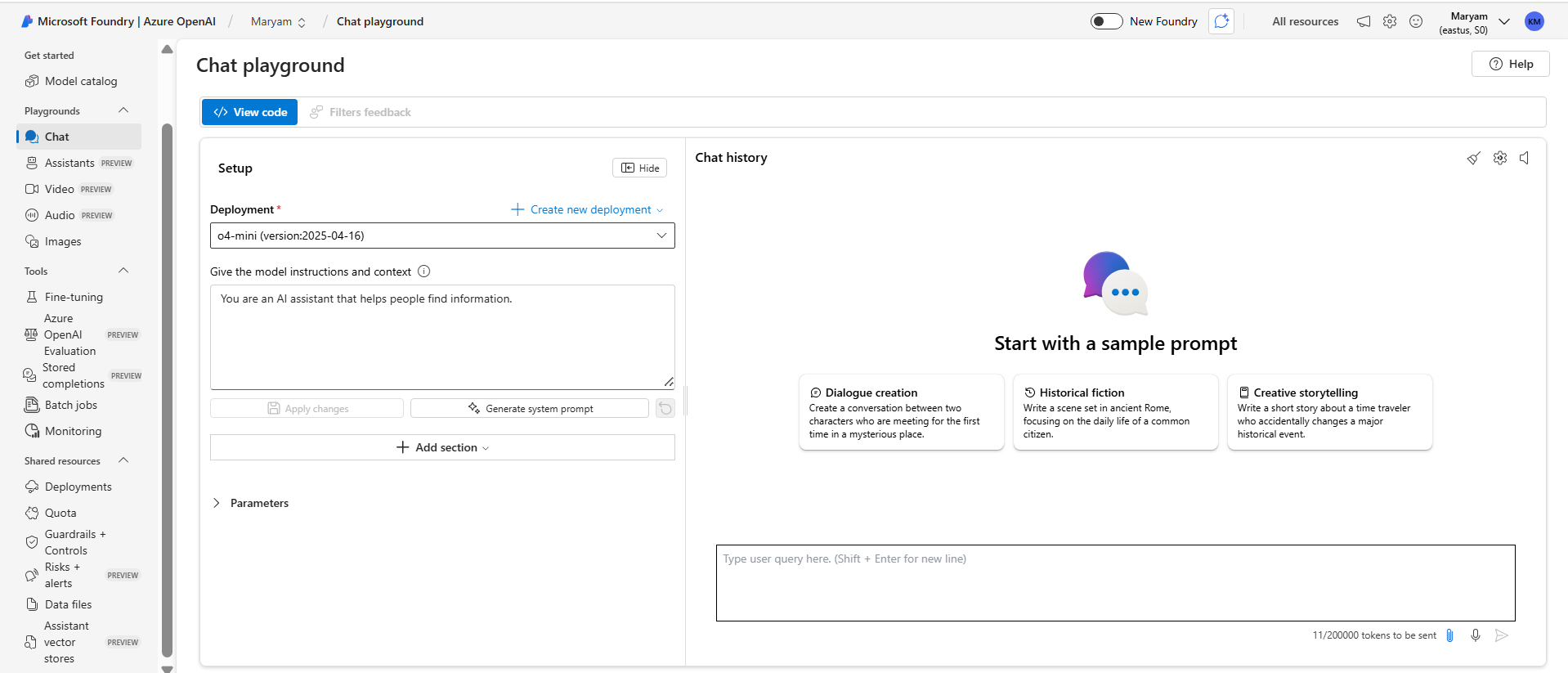

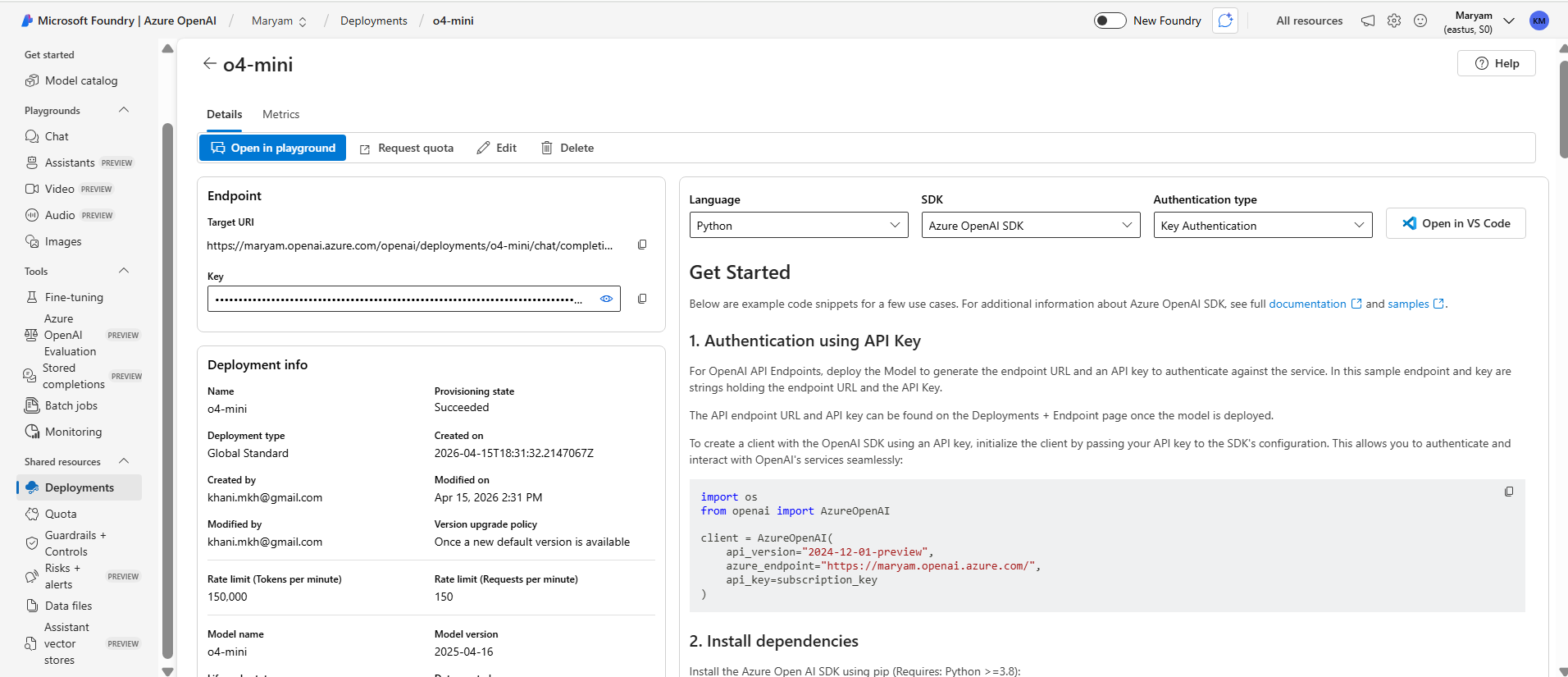

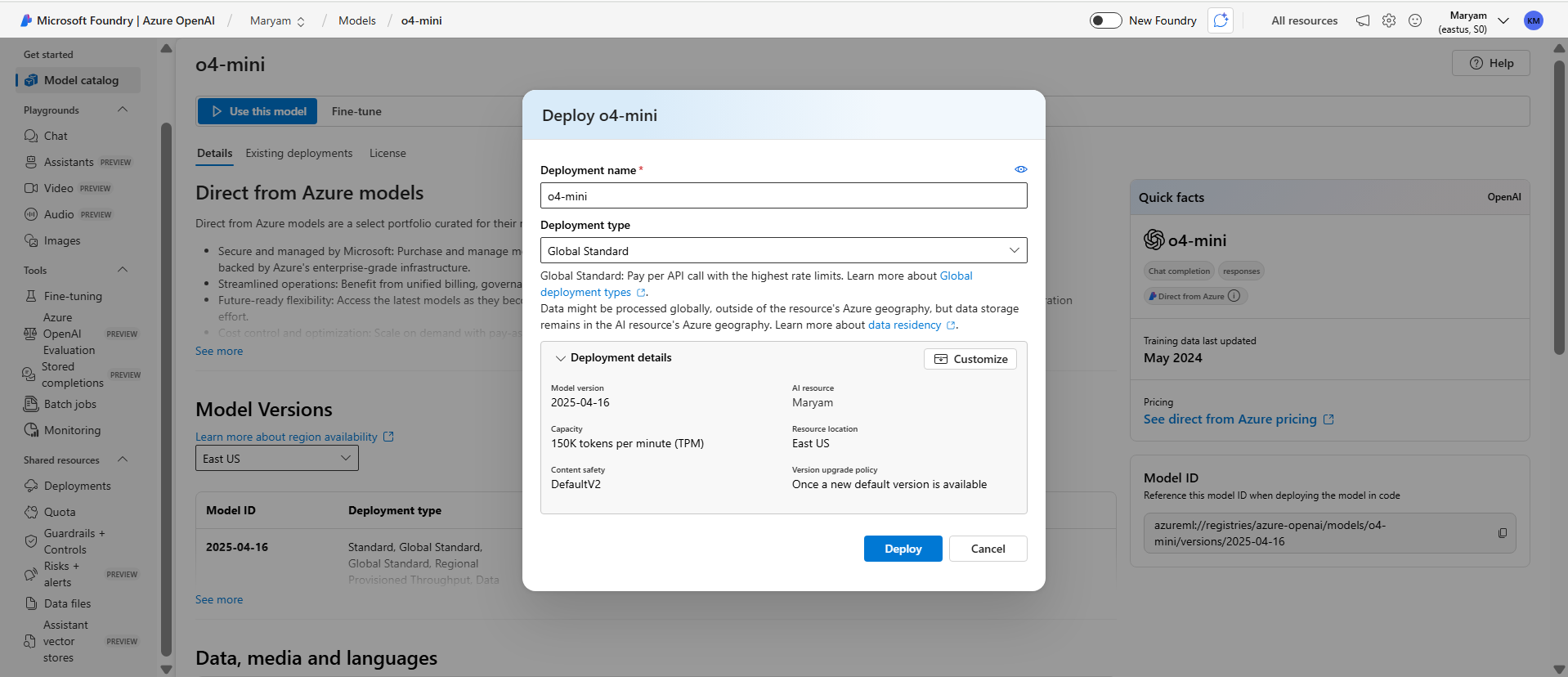

  3. Go to Deployments and create a chat deployment.

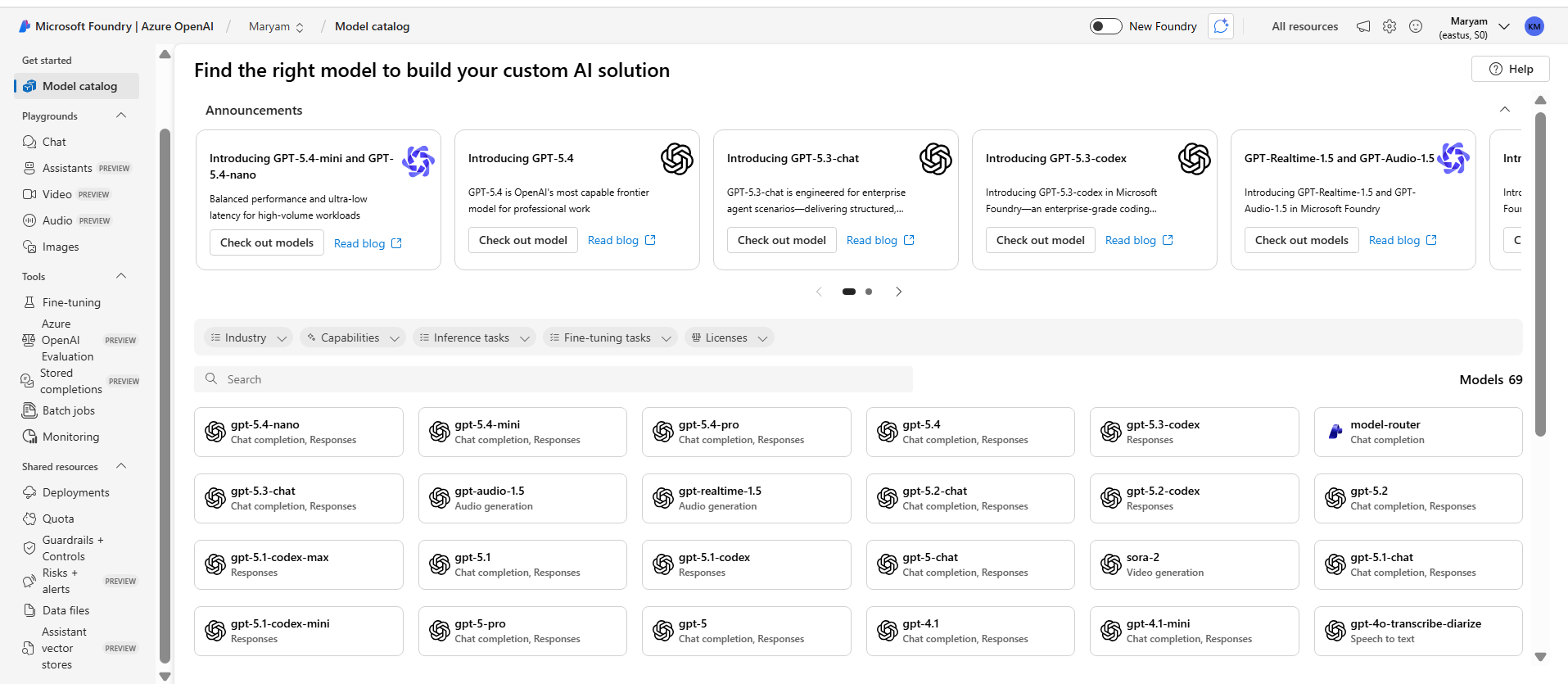

  4. Select a chat-capable model such as GPT-4.1, GPT-4.1-mini, or GPT-4o-mini, based on your cost/latency needs.
  5. Give deployment a clear name (example: gpt-4.1-nano) and save.
  6. Copy endpoint and key from resource Keys and Endpoint page.
  7. Put values into .env:
    • AZURE_OPENAI_ENDPOINT: your Azure OpenAI endpoint URL
    • AZURE_OPENAI_API_KEY: your key
    • AZURE_OPENAI_CHAT_DEPLOYMENT: deployment name from step 5
    • AZURE_OPENAI_API_VERSION: keep the version supported by your SDK and model

Optional but recommended for vector RAG:

  1. Create a second deployment for embeddings (example model family: text-embedding-3).
  2. Set AZURE_OPENAI_EMBEDDING_DEPLOYMENT in .env to that embedding deployment name.

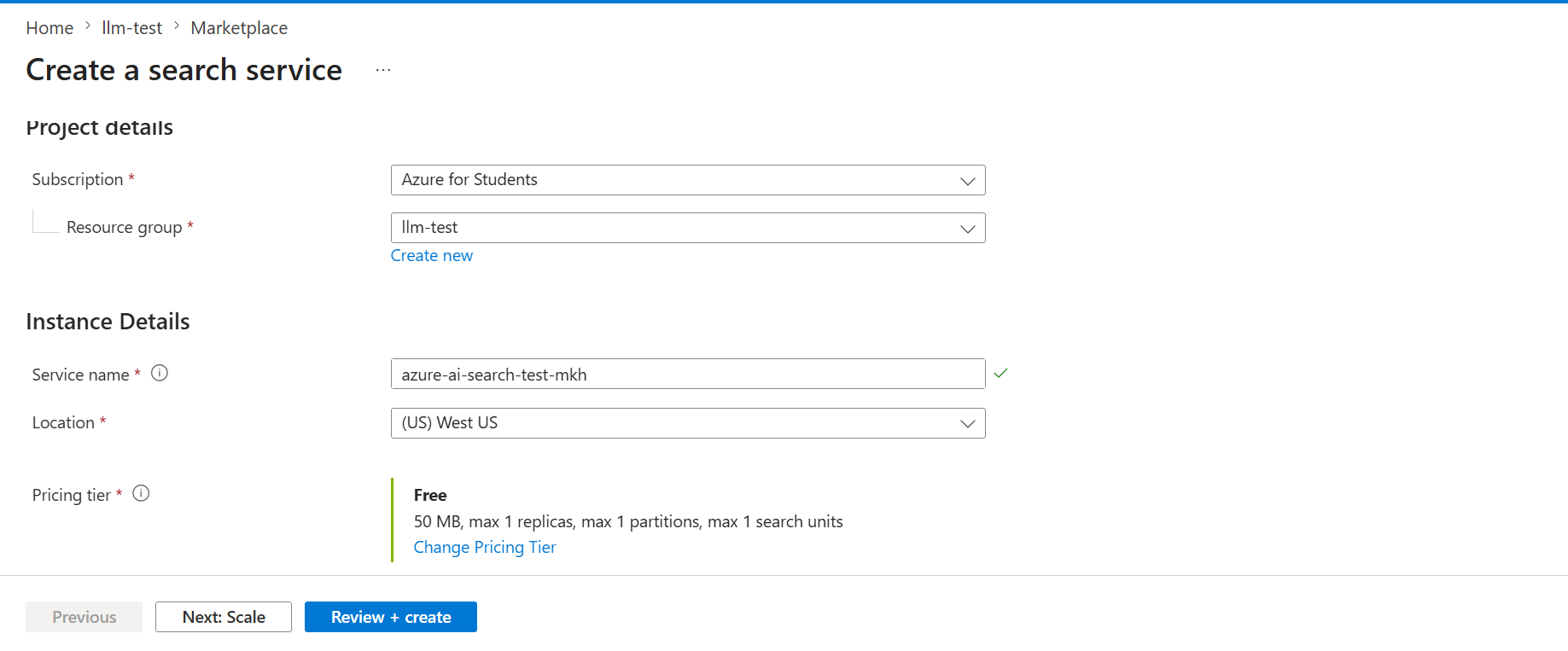

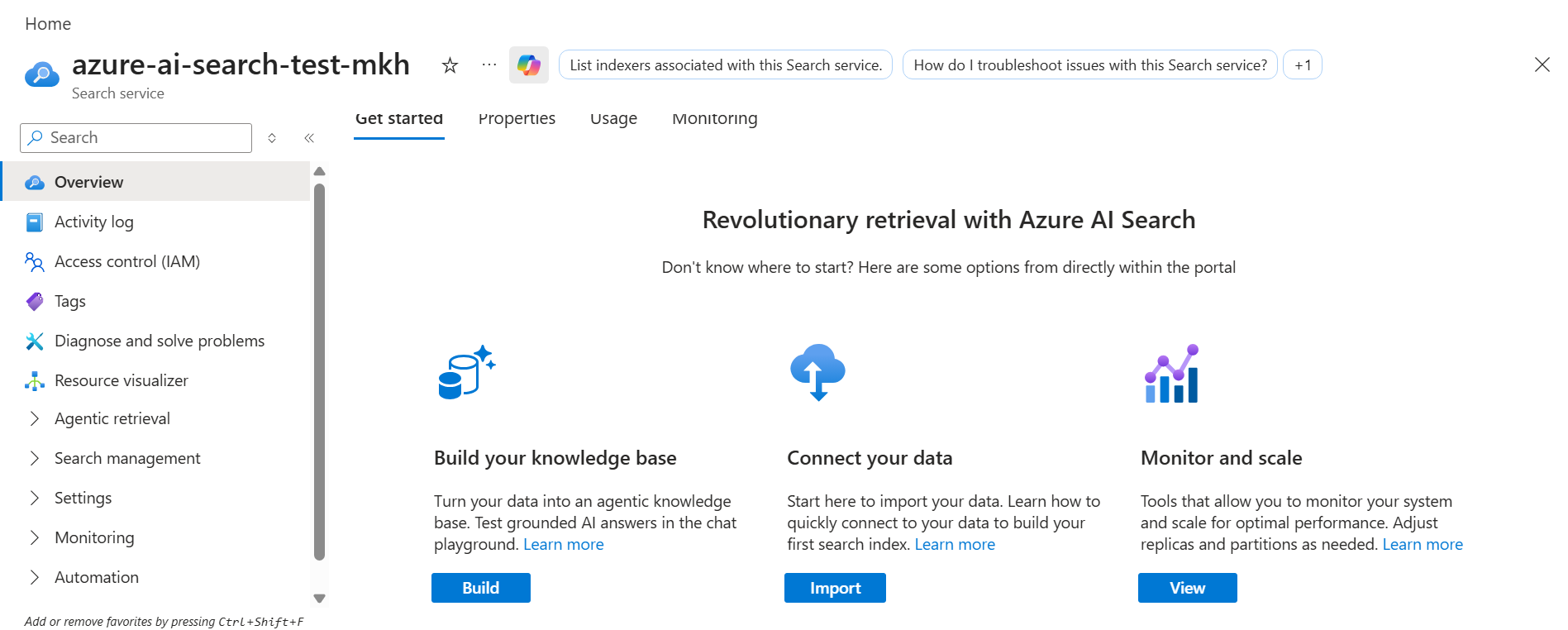

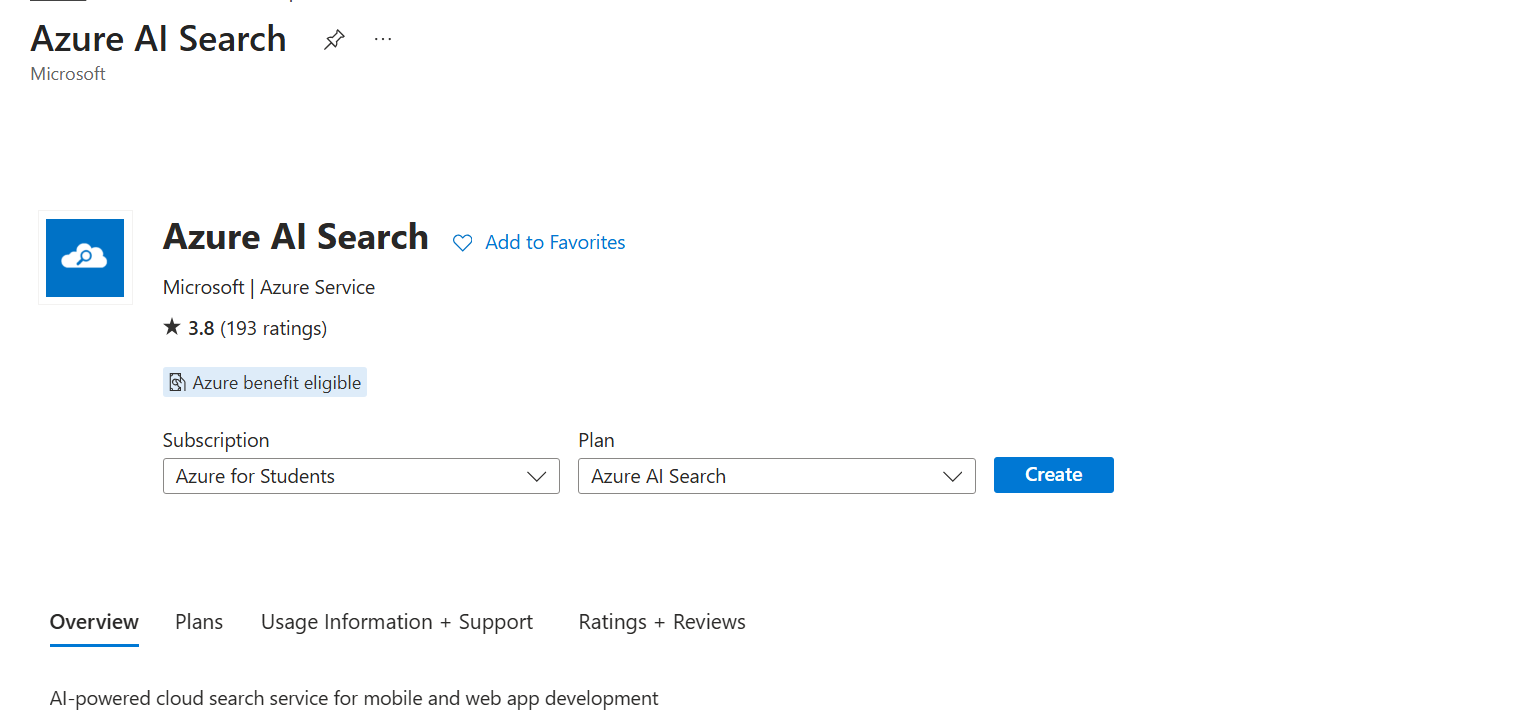

  1. Create an Azure AI Search resource in Azure Portal.
  2. Create an Azure Storage Account and Blob container.
  3. Upload your CSV (for this repo, use wine-ratings.csv) to the Blob container.

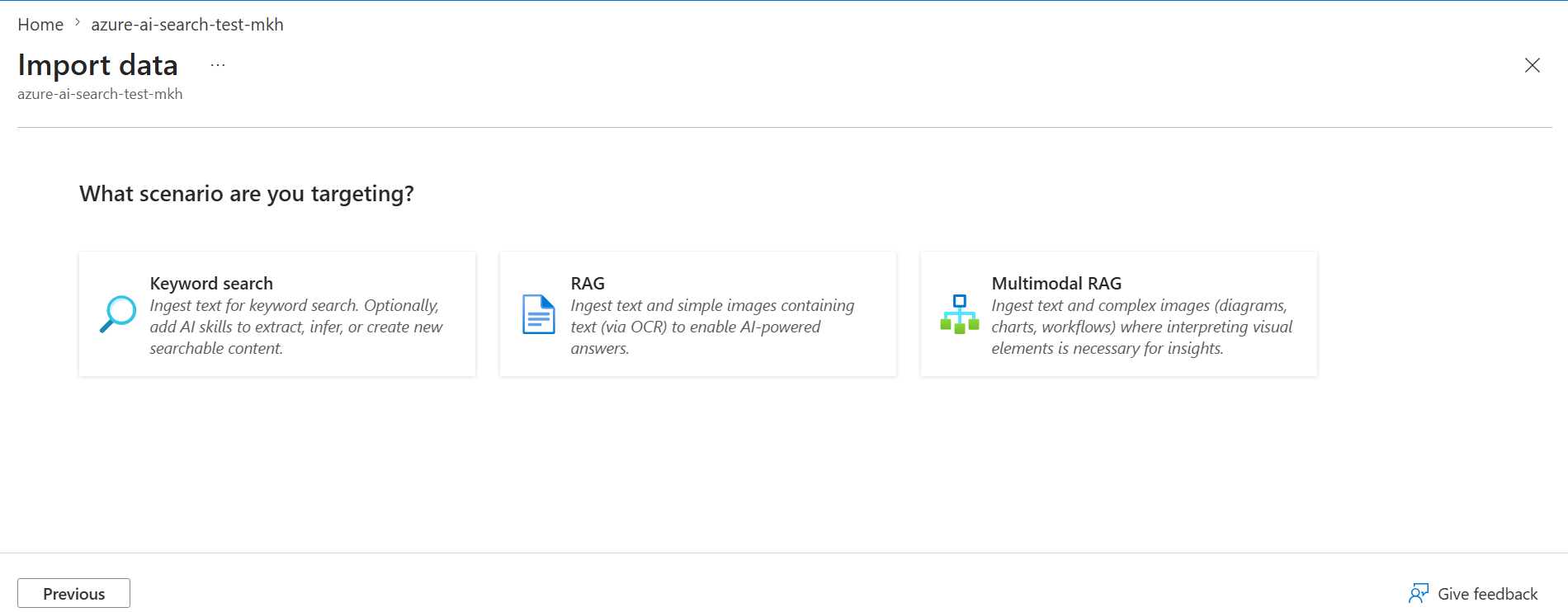

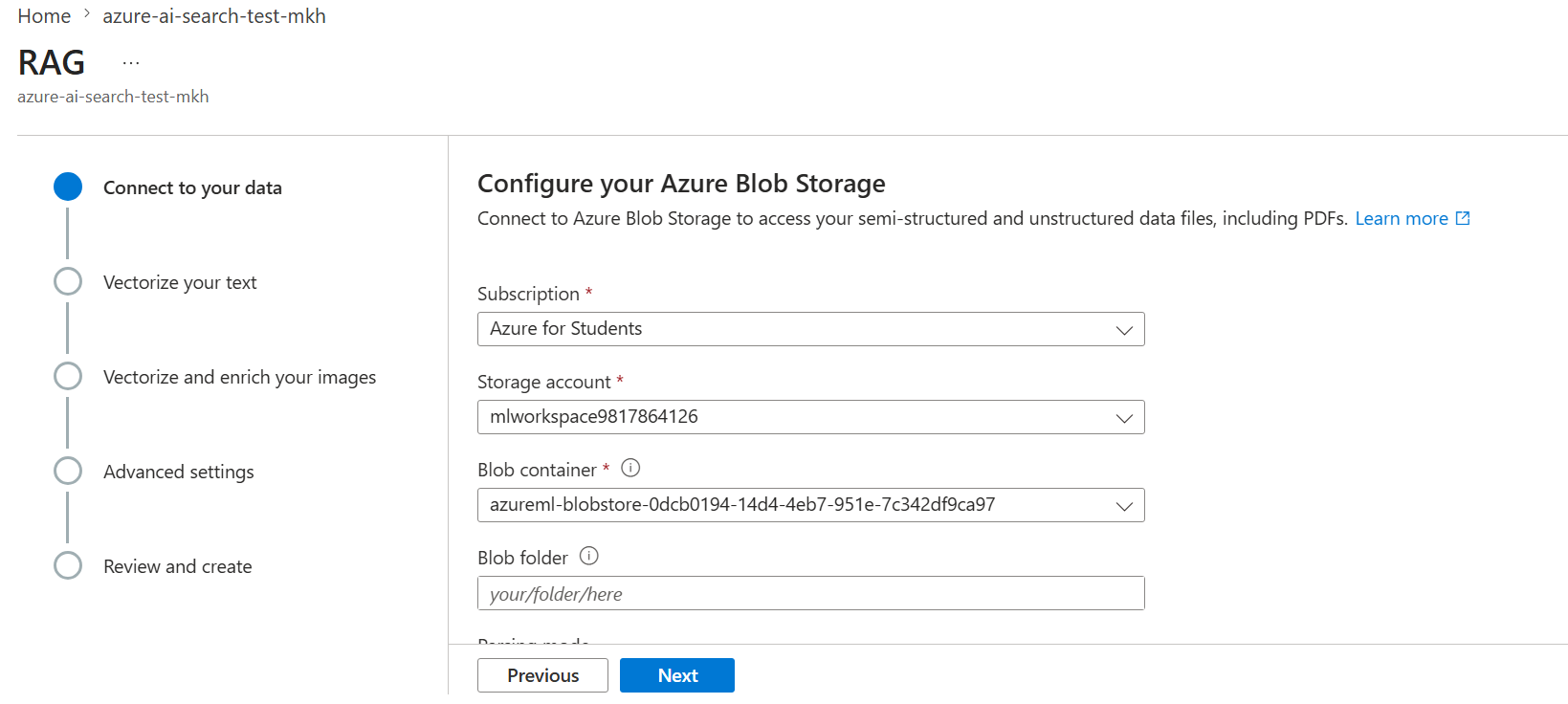

  4. In Azure AI Search, start Import data / Import and vectorize data wizard.

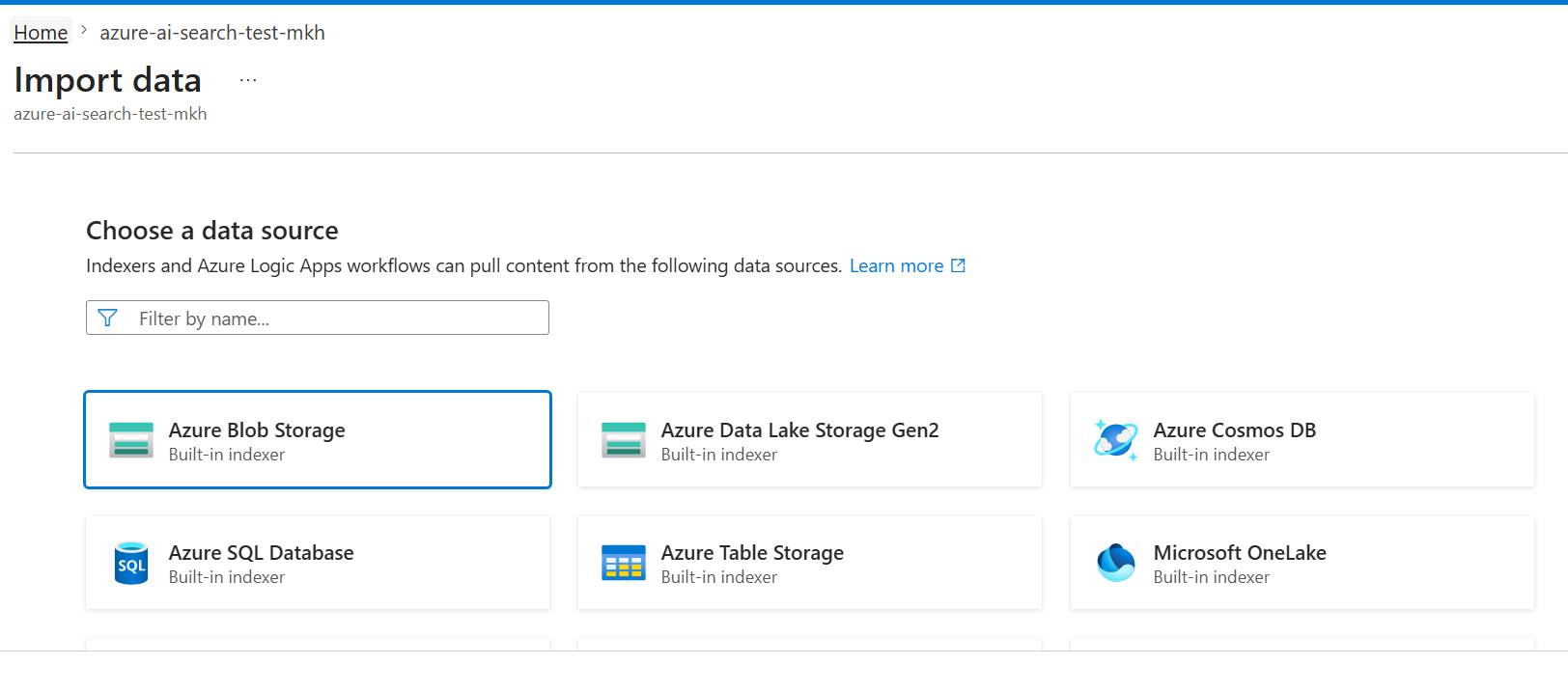

  5. Choose Azure Blob Storage as data source and select your CSV file/container.
  6. Configure parsing/chunking so text content is searchable.
  7. Choose or customize index fields, then note final field names for:
    • content text field
    • title field
    • source/id field
    • vector field

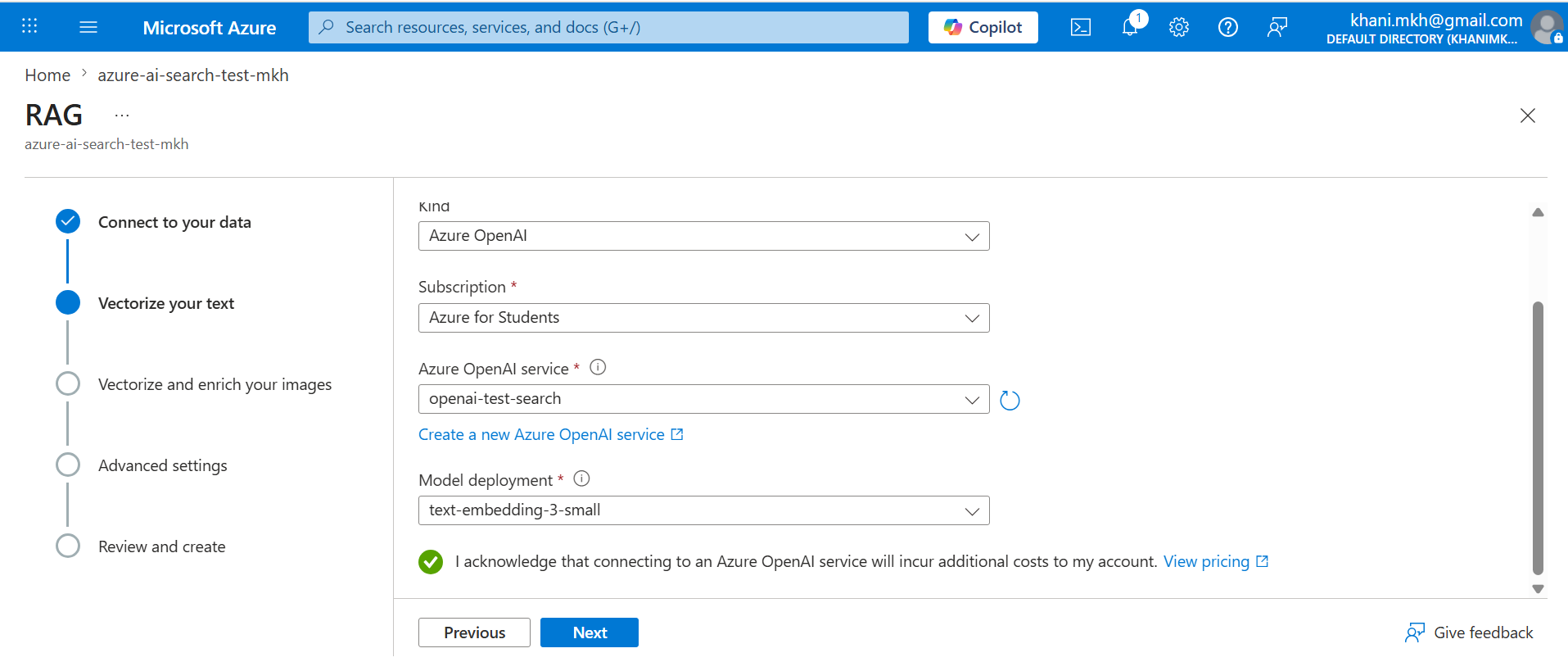

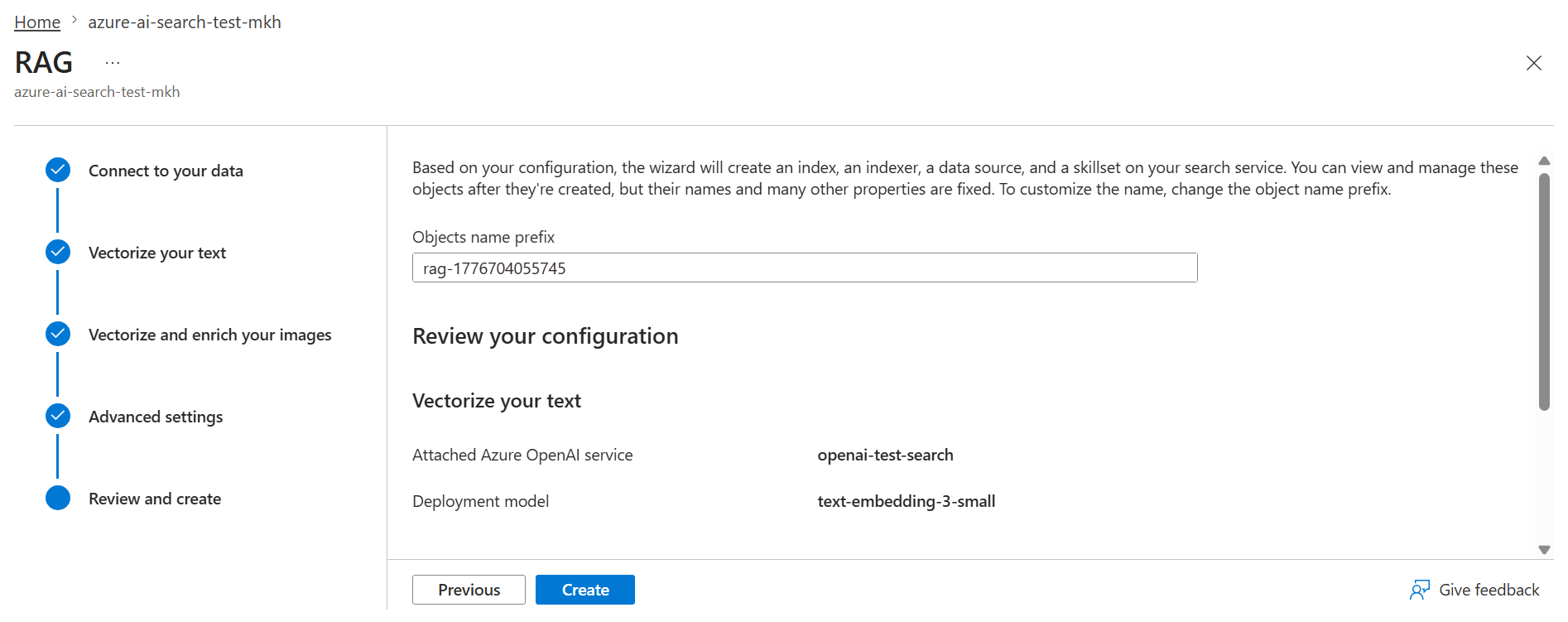

  8. For vectorization, connect the wizard to your Azure OpenAI embedding deployment.
  9. Run indexer and verify documents are loaded into the index.
  10. Put values into .env:
    • AZURE_SEARCH_ENDPOINT
    • AZURE_SEARCH_ADMIN_KEY
    • AZURE_SEARCH_INDEX_NAME
    • AZURE_SEARCH_CONTENT_FIELD
    • AZURE_SEARCH_TITLE_FIELD
    • AZURE_SEARCH_SOURCE_FIELD
    • AZURE_SEARCH_VECTOR_FIELD

Important connection for this app:

  • RAG_RETRIEVAL_MODE=hybrid or vector only works as expected when both are present:
    • AZURE_OPENAI_EMBEDDING_DEPLOYMENT
    • AZURE_SEARCH_VECTOR_FIELD

Run with Docker

  • Start:
    • docker compose up –build
  • Stop:
    • docker compose down

Service URL:

  • http://localhost:8010

Run without Docker

  1. Create venv
  2. Install dependencies
  3. Start uvicorn

Example:

  • python -m venv .venv
  • .\.venv\Scripts\Activate.ps1
  • pip install -r requirements.txt
  • uvicorn app.main:app –app-dir backend –reload –port 8010

How the Code Is Organized

What Happens Step-by-Step

  1. User opens browser at root URL /
  2. Backend returns frontend page from frontend/index.html
  3. User picks mode (chat or rag) and submits question
  4. Frontend sends POST request to backend:
    • Chat mode: /api/chat
    • RAG mode: /api/rag/chat
  5. Backend validates payload using backend/app/schemas.py
  6. Backend calls service in backend/app/services/rag_chat.py
  7. Service talks to Azure OpenAI (and Azure Search for RAG)
  8. Backend returns ChatResponse JSON

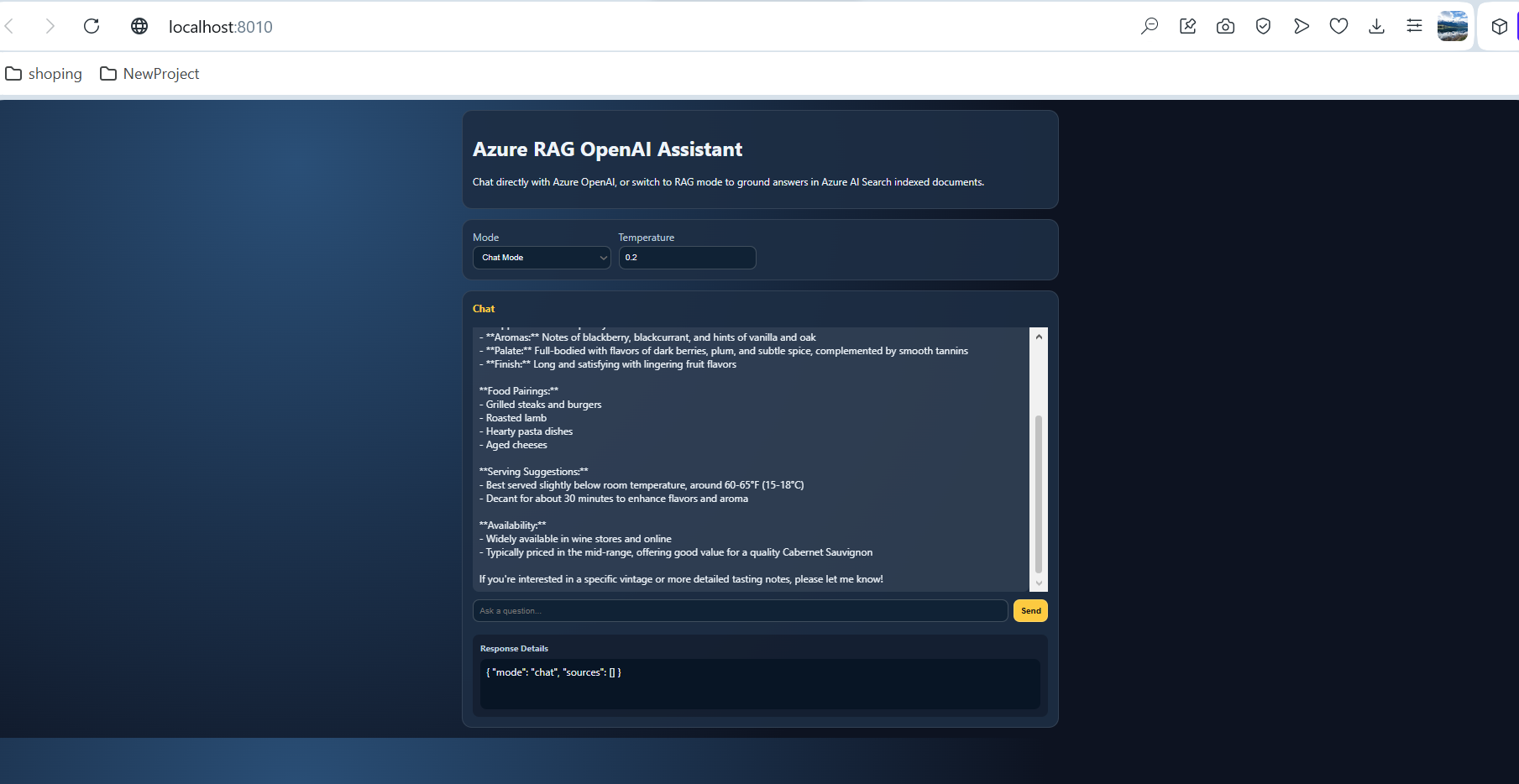

  9. Frontend renders answer and, in RAG mode, renders returned documents in details panel

How Each Service Works (with key code)

1. FastAPI app service

File: backend/app/main.py

Key responsibilities:

  • Creates FastAPI app
  • Mounts static files for frontend
  • Exposes endpoints:
    • GET /api/health
    • GET /api/config
    • POST /api/chat
    • POST /api/rag/chat

2. Settings service

File: backend/app/config.py

Key responsibilities:

  • Loads env variables into typed Settings
  • Maps .env keys (aliases) to Python fields
  • Provides cached singleton settings via get_settings()

Why this matters:

  • Any index schema changes can be handled by env field mappings instead of code edits

3. Chat + RAG domain service

File: backend/app/services/rag_chat.py

Main methods:

  • chat(question, history, temperature)
    • Builds plain chat messages
    • Calls Azure OpenAI chat.completions
  • rag_chat(question, history, temperature)
    • Calls search_documents(question)
    • Builds context from retrieved docs
    • Builds RAG system prompt with that context
    • Calls Azure OpenAI chat.completions
    • Returns answer + sources + docs
  • search_documents(query)
    • Creates Azure Search client
    • Uses retrieval mode from env: text, vector, or hybrid
    • Uses vector query only if both vector field and embedding deployment are configured
  • _to_doc(item)
    • Normalizes returned search result into doc dictionary
    • Preserves all fields and maps title/content/source using env-configured field names

How Backend and Frontend Are Connected

Static hosting connection

  • Backend serves static frontend files:
    • app.mount(“/static”, StaticFiles(…))
    • GET / returns index.html

API connection

Frontend file frontend/app.js sends fetch requests:

  • Endpoint selection:
    • /api/chat when mode is chat
    • /api/rag/chat when mode is rag
  • Payload:
    • question
    • history (last 10 messages)
    • temperature

Backend file backend/app/main.py receives the payload and returns ChatResponse.

Frontend then:

  • Appends assistant answer to chat messages

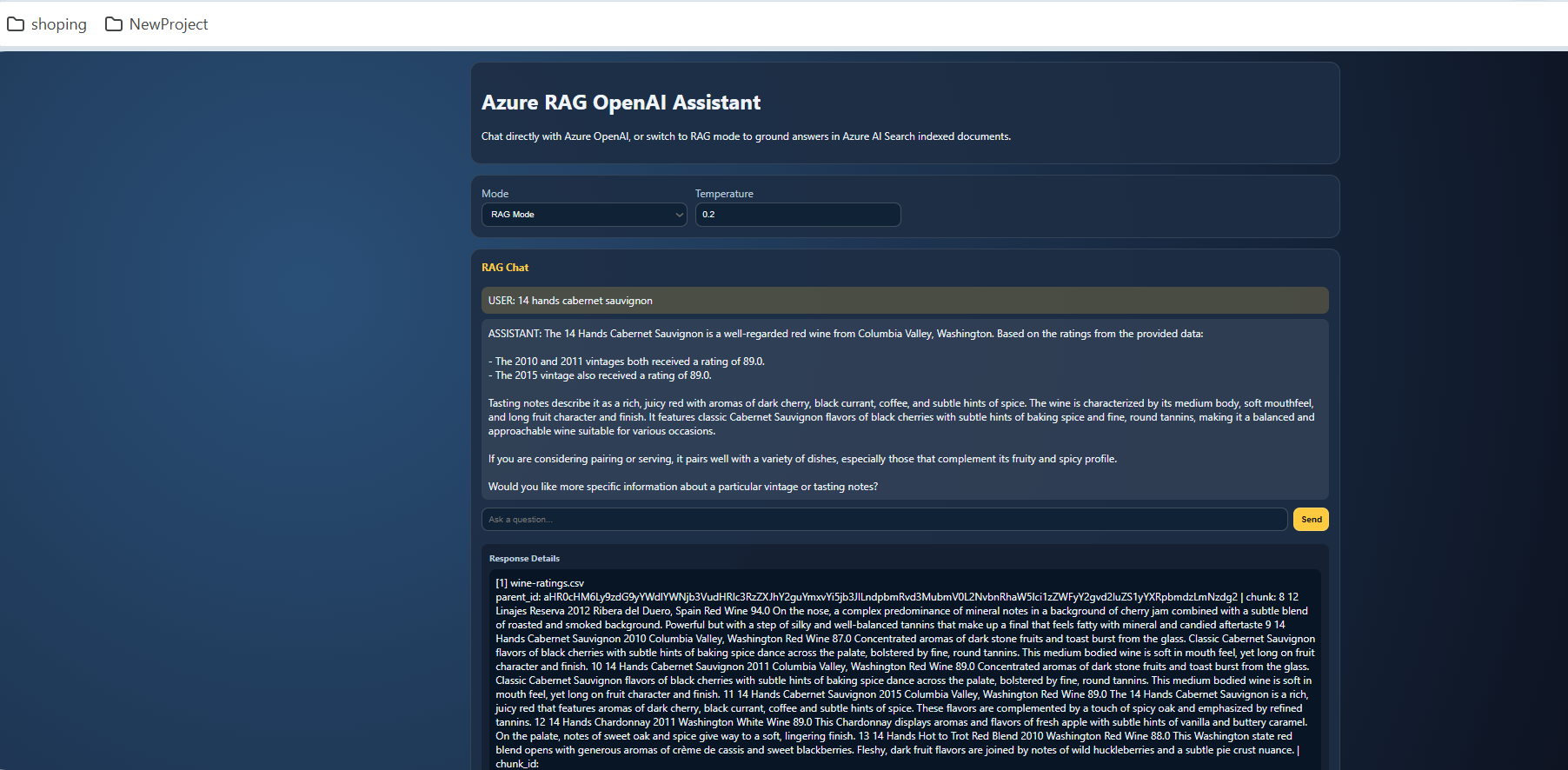

  • For RAG, renders data.docs into card-like results in Response Details

How RAG Works Here

  1. User sends question in RAG mode
  2. Backend calls search_documents(question)
  3. Azure Search returns top K documents
  4. Service builds a context block from documents
  5. Service injects context into system prompt
  6. Service calls Azure OpenAI chat completion
  7. Service returns:
    • answer: generated text
    • sources: source list from docs
    • docs: full document objects (for UI rendering)

Important RAG controls via env:

  • RAG_RETRIEVAL_MODE: text vector hybrid
  • RAG_TOP_K
  • AZURE_SEARCH_*_FIELD mappings
  • AZURE_OPENAI_EMBEDDING_DEPLOYMENT (needed for vector/hybrid vector part)

API Request Libraries: Python and JavaScript

Python example with requests

1
2
3
4
5
6
7
8
9
10
11

import requests

payload = {
    "question": "best Cabernet Sauvignon",
    "history": [],
    "temperature": 0.2,
}

resp = requests.post("http://localhost:8010/api/rag/chat", json=payload, timeout=60)
resp.raise_for_status()
print(resp.json())

JavaScript example with fetch

1
2
3
4
5
6
7
8
9
10
11
12
13
14

const payload = {
  question: "best Cabernet Sauvignon",
  history: [],
  temperature: 0.2,
};

const response = await fetch("/api/rag/chat", {
  method: "POST",
  headers: { "Content-Type": "application/json" },
  body: JSON.stringify(payload),
});

const data = await response.json();
console.log(data);

Quick Tips

  • Keep index field mappings in .env aligned with your Azure Search schema.
  • If sources show unknown, check AZURE_SEARCH_SOURCE_FIELD.
  • If vector search is not used, check:
    • AZURE_OPENAI_EMBEDDING_DEPLOYMENT
    • AZURE_SEARCH_VECTOR_FIELD
  • Use /api/config to verify runtime settings quickly.
  • For local troubleshooting, first test /api/health, then /api/chat, then /api/rag/chat.

CI/CD Note About Infra Files

Current workflow .github/workflows/azure-rag-openai-assistant.yml currently deploys directly with Azure CLI commands to ACR/Container Apps.

If you want the workflow to use infra scripts and environment profiles consistently, wire these in the workflow:

  1. export_env_config.py with staging.json or production.json
  2. deploy_containerapp.sh for deployment update
  3. configure_traffic.sh for revision traffic rules
  4. configure_alerts.sh for monitoring alerts

This lets you keep deployment behavior in infra files rather than duplicating shell logic inside workflow YAML.
